1 AdaptIQ Quick Reference Guide

1.1 Summary

The Quick Reference Guide is designed to help you navigate and understand the AdaptIQ software. The guide will offer a high-level view of the AdaptIQ software and provide a description of key elements that AdaptIQ has to offer.

The AdaptIQ Quick Reference Guide is a short summary of the AdaptIQ User Guide (Version 8.12.1).

2 Dashboard

2.1 Overview

The Dashboard provides you with a site wide overview of storage levels and movement information. Once logged into AdaptIQ the Landing Site will be set by default on the Dashboard Page, dependent on your user permissions setting.

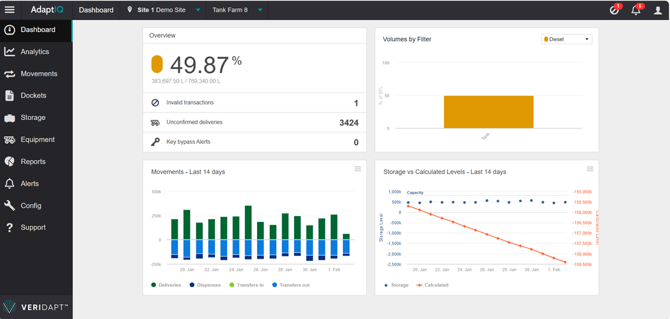

The page is divided into four panels, each providing site metrics broken down into Overview / Volumes by Filter / Movements / Storage Vs Calculated Levels

The data is dependent on which Tank Filter is selected

2.2 Dashboard: Tank Filter

Step	Description	Image

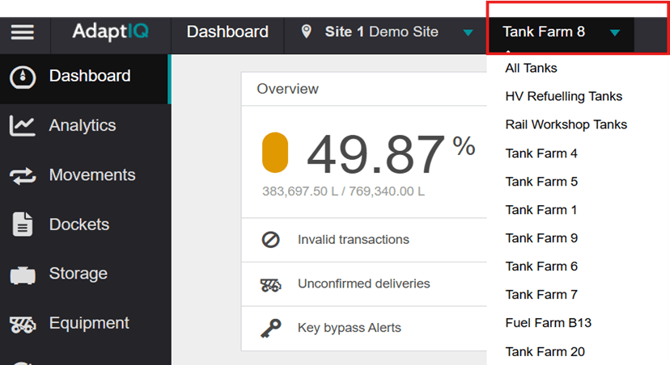

	Select the Tank Filter using the Tank Filters drop down menu, in the top navigation bar. For users with access to more than one site the Tank Filter, will contain All Tanks, and the list specific sites you have permission to access. Select an individual site from the Tank Filter to display a single sites metrics

Step

Description


Select the Tank Filter using the Tank Filters drop down menu, in the top navigation bar.

For users with access to more than one site the Tank Filter, will contain All Tanks, and the list specific sites you have permission to access.

Select an individual site from the Tank Filter to display a single sites metrics

2.3 Dashboard: Overview Panel

Step

Description


This panel is located at the top left corner of the page. The Overview panel lists the following information

To view the details of the notification

Click the name of the transaction to open and view the details of each transaction.

Field	Description

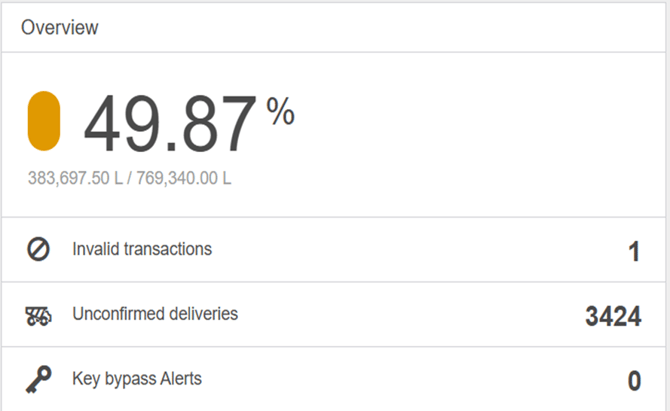

Storage Level	The storage level of the main product (i.e. Diesel) in the selected Tank Filter. This is presented in two lines: The first line indicates the current level as a percentage of the total SFL (Safe Fill Level) of the selected Tank Filter, and the product is represented by its colour code. The second line indicates the current stored volume of the main product and the total SFL of the selected Tank Filter in litres.
Invalid Transactions	The current number of Invalid Transactions received from AdaptMAC/AdaptMCU connected to the selected Tank Filter.
Unconfirmed Deliveries	The current number of Unconfirmed Deliveries to the Tanks under the selected Tank Filter.
Key Bypass Alerts	The current number of AdaptMAC’s or AdaptMCU's in Key Bypass Alarm mode, for those connected to the selected Tank Filter.

2.4 Dashboard: Volumes by Filter

Step	Description	Image

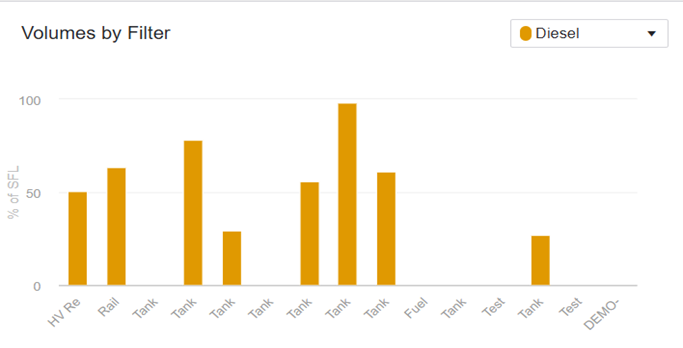

1	This panel is located at the top right corner of the page. The Volumes by Filter presents a breakdown of product levels per tank in the form of a column chart. The horizontal axis represents the Tank Filters By default, the site's main product is displayed. In sites with multiple products, you can change between them through the drop-down menu to the right in the Farm Volumes Panel.
2	Hover your mouse over a specific bar to display the total storage in litres for this Tank Filter. Select the drop-down menu to change the product type

Step

Description


This panel is located at the top right corner of the page. The Volumes by Filter presents a breakdown of product levels per tank in the form of a column chart. The horizontal axis represents the Tank Filters

By default, the site's main product is displayed. In sites with multiple products, you can change between them through the drop-down menu to the right in the Farm Volumes Panel.

Hover your mouse over a specific bar to display the total storage in litres for this Tank Filter.

Select the drop-down menu to change the product type

2.5 Dashboard: Movements

Step	Description	Image

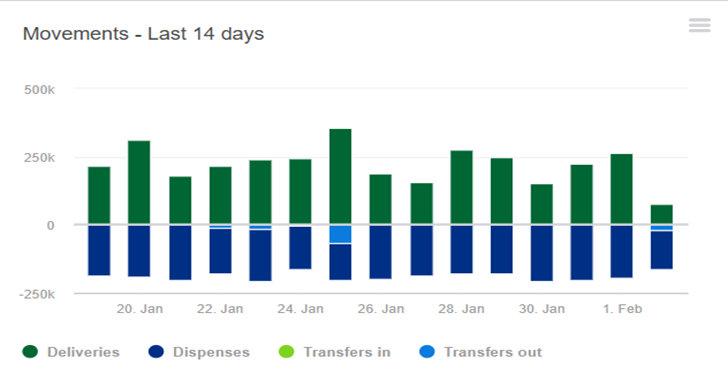

1	This graph displays the amount of the main product that has been delivered and dispensed across the selected Tank Filter for the last 14 days, in the form of a column chart.

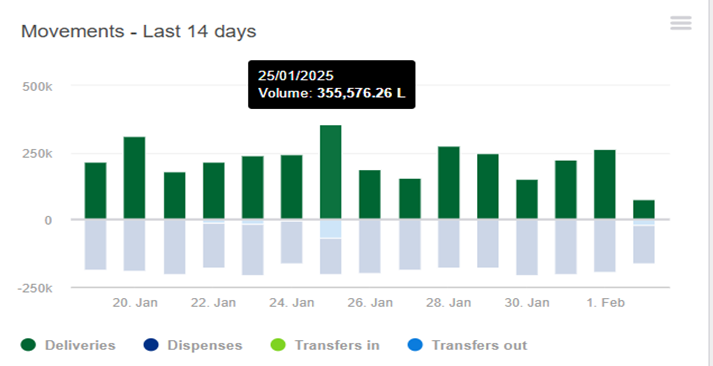

2	Hover you mouse over a specific bar to display more information about this sample.

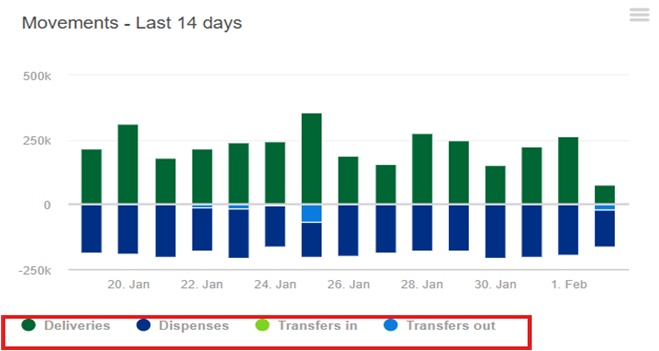

3	Select legend name i.e. Deliveries / Dispenses or Transfer to show/hide data.

2.6 Dashboard: Storage Vs Calculated Levels

Step	Description	Image

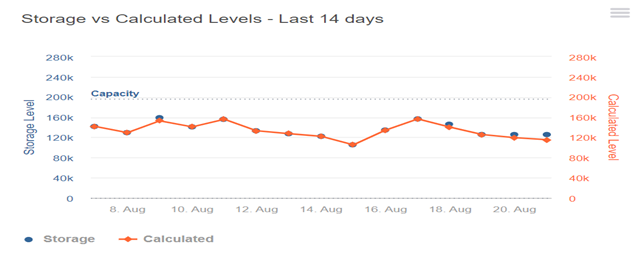

1	This panel is located at the bottom right of the page It displays the volume of the main product stored in the selected Tank Filter over the last 14 days. The orange colour represents the measured storage levels, as recorded by Tank Gauges, Manual Dip ..etc, while the blue colour represents the calculated storage values derived from the In/Out transactions volumes

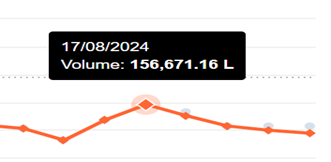

2	Hover your mouse over a specific point to display more information about the sample

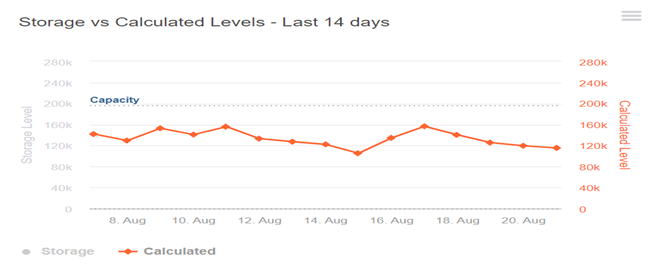

3	Click on Storage, or Calculated legend under the graph to show/hide the selected line
